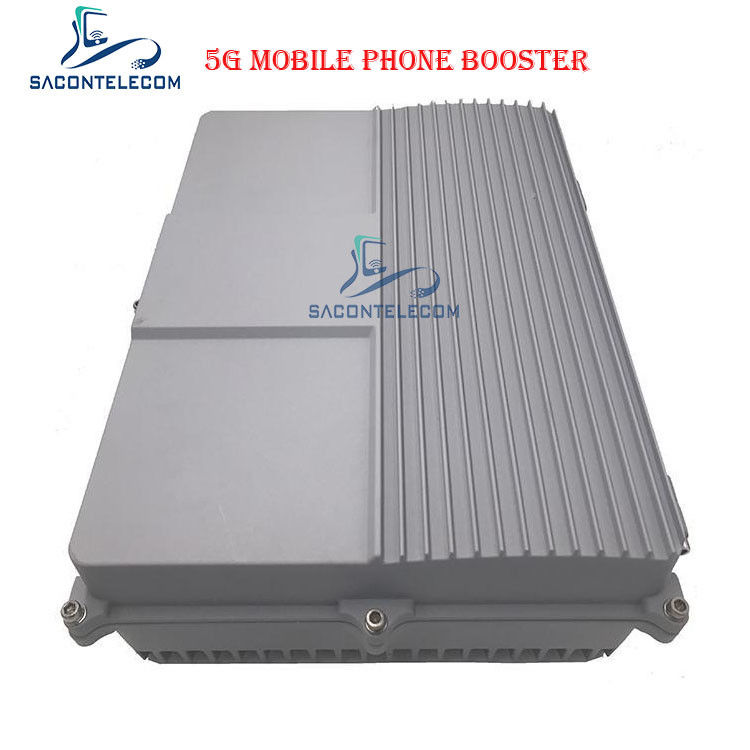

10W 3600MHz Mobile Signal Repeater 40dBm 5G Signal Booster IP65

Product Details:
Place of Origin: China
Brand Name: Sacontelecom
Certification: CE, ISO9001
Model Number: SA-40-5G
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: negotiation
Packaging Details: Neutral Packing Carton Box
Delivery Time: 7 Business Days
Payment Terms: L/C, D/A, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 2, 000PCS/Month

Detail Information

Product Name: 5G Signal Booster Output Power: 10w
Frequency: 3400~3600MHz Or 3600-3800MHz Gain: 85dB
Dimensions: 447mm X 357mm X 171mm Weight: 16kgs
High Light:

10W Mobile Signal Repeater

,

3600MHz Mobile Signal Repeater

,

40dBm 5G Signal Booster

Product Description

High Power 10W 40dBm 3600MHz Mobile Network Equipment 5g Signal Repeater



Descriptions:



5G is the latest generation of cellular networks. This fifth generation of cellular standards provides performance enhancements over 4G LTE, promising lightning-fast speeds and lower latency.



If you are having issues with getting a 5G signal, then a 5G cell phone signal booster is a great solution for you. With a 5G signal booster, you will no longer have issues with buildings, trees, or other obstructions blocking your cellular signal. The 5G signal booster will boost the outside signal into your home or vehicle so you can benefit from faster data speeds, reliable signal, and better voice quality. Our 5G booster kits come with everything you need to install the booster system yourself.



Today I will introduce our latest 5G outdoor waterproof repeater, it can be installed indoor and outdoor. Frequencies can be 3400~3600Mhz or 3600Mhz ~ 3800Mhz.  It can help you to solve the probelm for 5G signals. Welcome to contact with us for more details.





Applications:



Airports, tourism regions, golf courses, tunnels, factories, mining districts, villages, …
Hotels, exhibition centers, basements, shopping malls, offices, parking lots, …
To expand signal coverage or fill signal blind area where signal is weak or unavailable.



Features:

  1. Aluminum-alloy casing with IP65 protection has high resistance to dust, water and corrosion
  2. Built-in 5G Dynamic TDD Sync Detection Module, automatic completion of 5G wireless network
    cell search and wireless signaling processing
  3. Low interference to BTS by adopting linear amplifier with high gain and low noise
  4. USB port provides a link to a notebook for local supervision or IP Based NMS (Network Management System) that can remotely supervise Repeater's working status and download operational parameters to the Repeater Via Ethernet or LAN



Specifications:



System 5GNR TDD-3.8GHz
Frequency Range Uplink 3400~3600MHz or 3600-3800MHz
  Downlink 3400~3600MHz or 3600-3800MHz
Working Bandwidth 70MHz
Maximum Output Power Uplink 27±2dBm
  Downlink 30±2dBm/33±2dBm/37±2dBm/40±2dBm
Maximum Gain 85±3dB
Gain Adjustable Range 0~30dB/1dB Step
VSWR ≤1.5
Spurious Emission 9kHz~1GHz: ≤ -36dBm
  1GHz~12.75GHz: ≤ -30dBm
EVM ≤ 4.5%
Noise Figure ≤ 5dB
Maximum Input Power(Non-Destructive) -10dBm
Group Delay ≤ 5μs
I/O Impedance 50Ω
RF Connector 2XN-Female
Operation Temperature Range -25°C ~ + 55°C
Relative Humidity Range ≤ 95% (Non-Condensing)
Power Supply AC 220±10%V, 50/60Hz
Application Indoor or Outdoor(IP65)
Mounting Wall or Pole Mounting
Cooling Convection
Dimensions 447mm X 357mm X 171mm
Weight ≤16kg
Local Control Via USB and WiFi Hotspot
NMS Mode Wireless Modem
NMS Function Real-time Alarm for Door Status, Temperature, Power Supply,VSWR, etc;
Remote Control such as Turn On/Off, Increasing/Decreasing Output Power, etc;
Real-time Status for UL/DL Gain, Input/Output Power, All Status of Repeater etc;





Packing Lists:

5G signal extender 1PCS
Power adaptor 1PCS
