Product Details:
|
Product Name: | High Power Portable Jammer | Output Power: | Total 70W,2-8W Each Band With 2.5dbi Gains Omni Antennas |
---|---|---|---|
Working Time: | Built-in Battery: 25.2V/5200mAh Continue Working: Around 60 Minutes | Power Supply: | AC110-240V To DC28V |
Product Size: | 210x133x85mm (without Antenna) | Weight: | Appr.3.0kg |

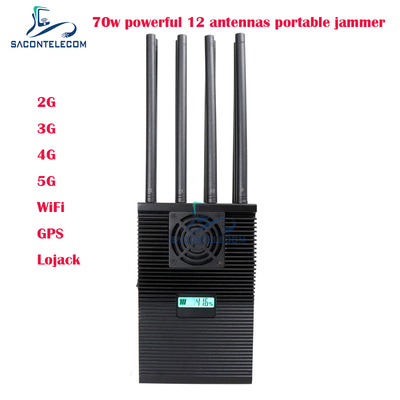

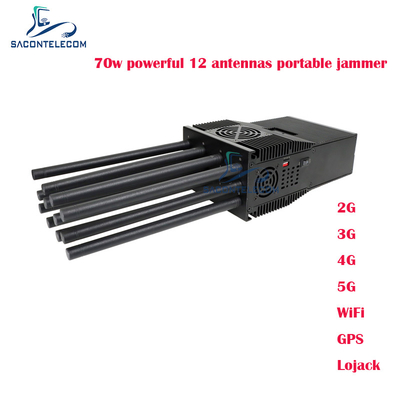

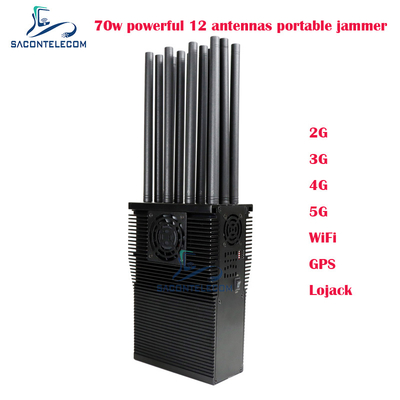

12 Bands Handheld Full Bands Mobile Phone Signal Jammer 70 watts Power Up To 60m Radius
Descriptions:
Jam Signal Type: SA-PJ12-Npro: Full Bands Mobile Phone 5G/4G/3G/2G +WiFi2.4G/5G+GPS+LOJACK
Output Power:Total 70W,2-8W each band with 2.5dbi gains omni antennas
Jam Radius:2-60meters Still depends on the strength signal in given area
Power Supply:AC110-240V to DC28V
Cooling System:High efficiency aluminum alloy radiator, Build-in 4x cooling fan
Working Time:Built-in battery: 25.2V/5200mAh Continue working: Around 60 minutes
Product Size:210x133x85mm (without antenna)
Product Weight: appr.3.0kg
Package Contents:Jammer Host x 1, omni antenna x12, AC Charger x1,
Additional Car Charger DC12V to Dc28V
Additional Carry Case Size 340 x 330x 140mm, 2.0kg
Features:
1. 12 bands portable jammer with 12 antennas design, blocking all cell phone 5G 4G 3G 2G LORA LOJACK GPS Wi-Fi RF signals;
2. Total 70w power;
3. Up to 60m radius;
4. AC100-240V or Additional Car Charger DC12V to Dc28V;
5. Built-in battery, working time 60 mins;
6. LCD display;
7. With DIP switch, can turn on/off any signal band without affect other bands.
Specifications:
Key technical specifications: SA-PJ12-Npro | |||
Channel | Output port | Frequency range | Average out-putting power ±1dbm |
CH 1 | VHF/LOJACK | 135-175MHz | 5W |
CH 2 | 5G3.5G/3.7G | 3400-3800MHz | 5W |
CH 3 | WIFI5.8G/5.2G | 5125-5850MHz | 2W |
CH 4 | 4GLTE Low | 738-821MHz | 8W |
CH 5 | 5G1500 | 1427-1518MHz | 8W |
CH 6 | GPSL2L3L4L5 | 1170-1390MHz | 5W |
CH 7 | GPSL1 | 1560-1610MHz | 5W |
CH 8 | 4GLTE High | 2570-2690MHz | 6W |
CH 9 | GSM | 925-960MHz | 8W |
CH 10 | DCS/PCS | 1805-1880MHz | 6W |
CH 11 | 3G | 2110-2170MHz | 6W |
CH 12 | WIFI2.4G/4G2300 | 2300-2485MHz | 6W |
Power supply: adapter 50 to 60Hz AC (110-240V AC/28V DC) Additional Car Charger DC12V to Dc28V Built-in battery:25.2V/5200mAh, Continue working: Around 60 minutes |
|||
Dimensions: (length, width, height) 210x133x85mm (without antenna) Net weight: 2.5kg Gross weight: 3.0kg Length of antenna :192mm Gain:2.5dbi |
|||
Neutral packing size: 300*270*130mm Gross weight: 4.0kg | |||
Safe case packing size: 340*330*140mm Gross weight: 6.0kg | |||
Total power: 70W Shielding radius: (10-60) meters, Still depends on the strength signal in given area |
Packing Lists:
1pcs portable jammer host
12pcs omni antennas
1pcs AC charger
Additional Car Charger DC12V to Dc28V
Additional Carry Case Size 340 x 330x 140mm, 2.0kg
