Product Details:
|
| Product Name: | Full Band DDS Vehicle Jammer | Application: | Military,Police |
|---|---|---|---|
| Output Power: | 1100w | Jamming Range: | 50 - 800meters,depend On Signal Strength Of Mobile Network |
| Advantage: | 20MHz-5850MHz | Weight: | 65kg |
| High Light: | ied jammer,dds jammer |
||

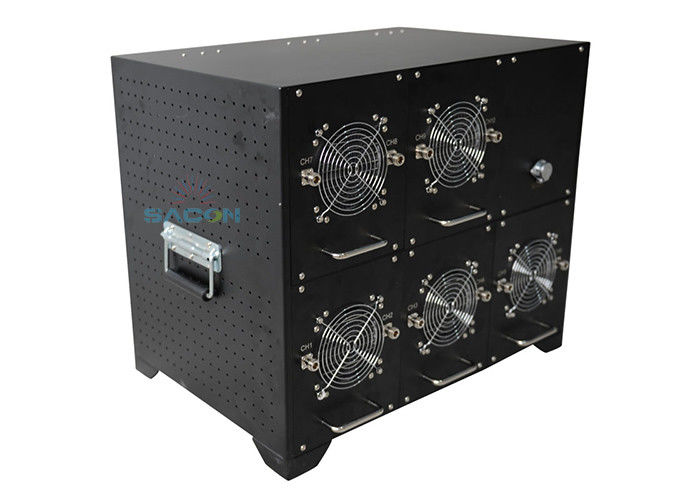

12 Bands IED Convoy Bomb Jammer For Protect Military And VIP Convoy
Description:
Protecting military and VIP convoys from the threat of Remote Control Improvised Explosive Devices
(RCIEDs)-road-side bombs has become a challenge and task in many parts of the world.
SA-VIP1100, High Power DDS Convoy Jamming System, implementing the most effective and reliable RF
jamming technology and equipped with a fully-integrated broadband jamming system.
RF Jammers or Bomb Jammers use RF jamming signals to defeat remote controlled improvised explosive
devices or RCIEDs. The RF Jammer theory of operation is the same as an IED Jammer in that they both
involve sending out RF Jamming signals to cause radio interference and attack the radio receiver of an
improvised explosive device or IED and help prevent it from detonating. RF Jamming or IED Jamming of
HF, VHF, UHF and Microwave radio frequencies enable the RF Jammer to reduce the risk of remote
controlled improvised explosive devices from triggering.
Advantage
Equipped with an ultra-broadband frequency bands : 20 - 5850Mhz
Provided with a on/off switch for each separate frequency band.
Special RF protection shielding design to make sure the passenger and VIP's safety .
Supplied to the Olympic Event and universiade.
To protect military and VIP team as well as some important place from the road-side remote improvised
explosive device (RCIED) attacks is becoming a global challenges and tremendous task in security fields
Characteristics
(1) Each module is controlled separately.
(2) This jammer with pelican case can add band frequency as customer"s requirements.
(3) It can be used in car.
(4) The output power, jamming range and band frequency can be adjusted.
(5) Use Pelican case, waterproof, shockproof, irrefrangible, dustproof and portable.
(6) Perfect Alarm System, Self Diagnostic Function
(7) "Smart active" cooling system enables unlimited continuous use.
(8) The system has a fully protected circuit in case of disconnection of antennas.
(9) The sturdy trolley type attach, case enables ease of mobility.
(10) The jammer is designed for easy installation and use. Simply attach selected antennas and operate from the jammers outside batteries, or plug into either
(11) All operational switches and check LEDs are externally installed.
Specification
| RF Characteristics | |
| Output Power | 1015Watts |
| Internal Modulation | FM Hopping Frequency |
| Signal Source | VCO Synthesized |
| Power Supply | AC110-240V, 24V DC |
| Modules Per Unit | 12 |
| Wired remote Control | ON/OFF with Switch |
| Monitoring | Adjusted output power by DIP Switch. |
| Antenna | External – Omni-directional for 360º |
| Power Amplifier Protectors | Full VSWR protector |
| Operating hours | Unlimited |
Can add jamming frequency LTE800, LTE2300, LTE700,LTE2600;
| Channel | Frequency Range | Output Power(±1dBm) | Output Power(±1dBm) |
| CH1 | 20~108MHz | Wireless Toys , FM Radio | 50dBm |
| CH2 | 135~174MHz | walkie-talkie(VHF) | 50dBm |
| CH3 | 300-400MHz | Remote Control | 50dBm |
| CH4 | 400~470MHz | walkie-talkie(UHF), car alarm | 50dBm |
| CH5 | 851~894 MHz | Cellular CDMA | 50dBm |
| CH6 | 902-960MHz | Cellular GSM, E-GSM,Drone | 50dBm |
| CH7 | 1805~1990MHz | Cellular DCS,PCS ,LTE1800 | 50dBm |
| CH8 | 1220-1230MHz | GPS L2,Drone | 47dBm |
| CH9 | 1570-1580MHz | GPS L1,Drone | 47dBm |
| CH10 | 2110~2170MHz | Cellular WCDMA | 50dBm |
| CH11 | 2400-2485MHz | WiFi, Bluetooth, Drone | 50dBm |
| CH12 | 5725-5850MHz | WiFi, 5.8G, Drone | 41.7dBm |
|
Power Supply: AC110-240V, DC28V Output power: 1015W |
|||
|
Power Consumption: 3100W Weight:65Kg |
|||
|
External Panel Antennas Size(L×H×W):640×540×550mm |
|||
| Humidity: 5%-95% Working temp: -20’C to +55’C degree Celsius |
|||
Applications
Prevent remote controlled improvised explosive devices from being activated and stop terrorist attacks;
Protect explosives handling experts;
Protect important places such as bus/train stations, plazas, schools, mass gatherings, stadiums, etc;
Risk mitigation and explosives removal in specified spots;
Police used for VVIP convoy, anti drug, riot control, etc.
Military used for border control, etc.
