Product Details:
|
| Product Name: | Radio Frequency Disruptor | Jamming Range: | 800 Meters |
|---|---|---|---|
| Output Power: | 70w | Frequencies: | 2.4G 5.8G GPS |
| Inside Battery: | 24V5A | Packing Weight: | 5kgs |
| High Light: | 70w UAV Signal Jammer,Built in Antennas UAV Signal Jammer,800m drone frequency scrambler |
||
70w Power Built-in Antennas 800m Range Portable UAV anti drone frequency scrambler Manufacturer
Descriptions:
Sacon Telecom is a professional manufacturer of jamming system solutions in China.

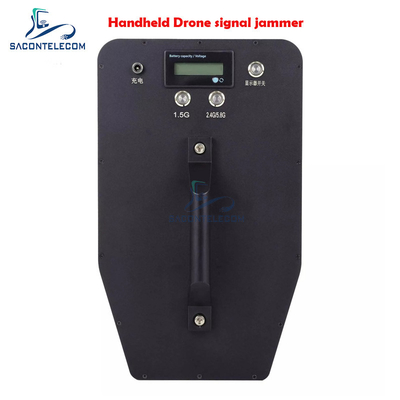

70w power handheld anti drone isolator SA-JM008 is built-in 6dBi directional antennas. It jams GPSL1, WiFi 2.4g and 5.8g signals. The jamming radius is up to 800m. This drone jamming device is only 2.8kgs, it is compact to operate. Built-in battery working 1 hour after full charged. Independent design of control switch, aiming at stopping peeping, driving away, and forcing to land. Welcome to enquiry for more details.
Features:
1. Total 70w high power, 800m distance;
2. Built-in battery, 1 hour working after full charged;
3. Customer can switch according to their requirements;
4. Alum case packing;
5. A power switch in the visible part of the body, can be operated directly by one hand.
6. OEM and ODM is available.
Specifications:
| Channel | Working Frequency | Output power(±1dBm) | |
| CH1 | 2.4G | 2400-2485MHz | 45 dBm |
| CH2 | 5.8G | 5725-5850MHz | 44 dBm |
| CH3 | GPSL1, Glonass, BDS | 1575.4±2.5MHZ(1.5G-GPS) 1602±5MHZ(1.5G-GLONASS) 1561±2.5MHZ(BDS) |
43 dBm |
| Power supply mode | Inside battery 1h: 24V, 5A; Or External battery |
||
| Turn on/off | 2 Independent Switch | ||
| Total Output power | 70W | ||
| Battery working time | 60 minutes | ||
| Working temperature | -20ºC to +55ºC | ||
| Power consumption | 120W | ||
| Weight | 2.8KG, Packing Weight:5KG | ||
| Size | 660X290X50mm | ||
| Directional Panel Antenna | 6dBi | ||
Applications:
Mainly applied to prisons, airports, scientific research centers, detention houses, interrogation rooms, courthouses, labor camp, forbid aerial photography by use of drone, etc.
