Product Details:
|
| Product Name: | Vehicle-mounted FPV UAV Jammer | Channels: | 8 |
|---|---|---|---|
| Output Power: | 400 Watts | Power Supply: | DC 24-29V External Battery, Battery Charged By AC220V |
| Size: | Φ60cm*35cm | Weight: | About 20kgs |
| Highlight: | 400-6Ghz Drone Signal Jammer,400 Watts UAV Jammer,Omni 360° FPV UAV Jammer |
||

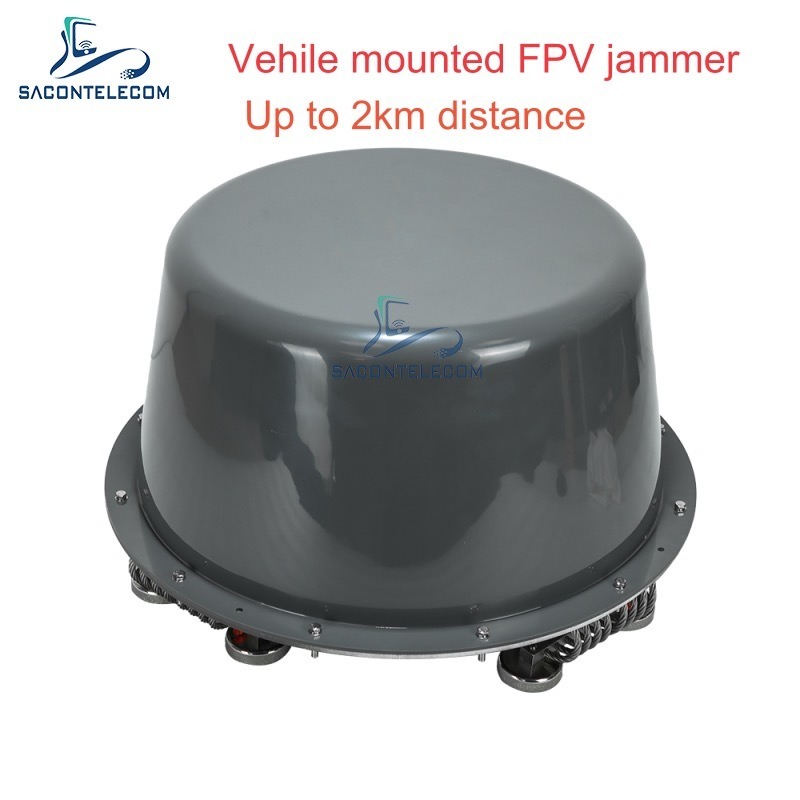

High-power signal jammer with 2km effective distance for vehicle-mounted drone defense applications.
| Model | SA-VDJ08 |
|---|---|
| Working Frequency | 400-500/500-600/600-700/700-840/840-1000 1000-1300/2400-2500/5700-5900MHz (Customizable) |
| Output Power | 400W total |
| Power Consumption | Approximately 800W |
| Antenna Gain | 3-8dBi |
| Antenna Coverage | 360° vertical; 65° horizontal |
| Jamming Distance | 300-2000m (Depends on jamming ratio/RC power) |
| Power Supply | DC 24-29V External battery, battery charged by AC220V |
| Battery | 1000WH battery, 1-1.5H continuous operation |
| Control Method | Control panel |
| Dimensions | Φ60cm × 35cm |
| Weight | 20KG |
| Operating Temperature | -40°C to 65°C |
| Item | Image | Quantity | Notes |
|---|---|---|---|
| Device |  |
1 | |
| Magnet | |
4-8 | |
| Battery | |
1 | Optional |
| Power Cable | |
1 | |
| Control Panel | |
1 | Frequency can be customized |
| Screws |
