Product Details:
|
| Product Name: | Outdoor Drone Jammer | Channels: | 3 Bands, 4 Bands ( Can Be Customized) |
|---|---|---|---|
| Jamming Distance: | Up To 1.5km | Power Supply: | AC100-240V (built-in AC Adapter, Output: DC24V 14.6A) |
| Size: | 362.8*310*130mm (excluding Antennas) | Weight: | 15kgs |
| High Light: | Waterproof Outdoor Drone Signal Jammer,Drone Signal Jammer 1.5km Distance,70w Powerful Drone Signal Jammer |
||
70w powerful outdoor fixed waterproof 1.5km distance drone signal jammer Manufacturer
Description of anti UAV jammer:
This fixed drone jammer SA-WDJ03-Pro can interfere with the flight of drone by emitting multi-band high-power electromagnetic waves, which can intercept the drone control signals within radius 10-1500 meters, forcing the drone to land or return home. It's able to make the flying UAV unable to carry on remote control, image / video transmission or positioning, then to make it hover, land or return to ensure the security of low-altitude airspace. With this device, you can easily build a no-fly zone for low-altitude UAVs / drones!
Features :
1. 3 channels frequencies 2.4G GPS and 5.8G, channels can be customized from 3 to 8;
2. Total 70w output power, up to 1.5km distance;
3. Outdoor waterproof type, cooling fans inside;
4. 24 hours working each day;
5. Power supply AC100-240V, suitable for every country.
Specifications:
|
Channel
|
Output Port |
Frequency Range |
Average Output Power |
| 1 | GNSS (GPS L1 / Galileo E1 / Glonass L1 / BeiDou B1) | 1500-1600MHz | 45dBm / 30W |
| 2 | Wi-Fi 2.4G | 2400-2500MHz | 45dBm / 30W |
| 3 | Wi-Fi 5.8G | 5715-5860MHz |
40dBm / 10W |
| Type: |
fixed drone jammer |
||
| Colour | Gray | ||
|
Shell Material |
aluminum alloy |
||
| Antennas |
3pcs high-gain omni antennas or 1pcs directional panel antenna |
||
|
Jamming Radius |
10-1500 meters without shelter (also depends on the real application place) |
||
|
Jamming Objects |
small low-altitude drones, drone system, UAV, UAS, WiFi / Bluetooth network, etc |
||
|
Function |
effectively counter low-altitude civilian drones such as DJI drones, to efficiently and conveniently ensure the security of low-altitude airspace, counter UAV/UAS |
||
|
Power Input |
AC100-240V (built-in AC adapter, output: DC24V 14.6A) |
||
|
Total Power Consumption |
200w | ||
|
Dimension |
362.8*310*130mm (excluding antennas) |
||
|
Antennas |
omni high gain 6dBi antennas |
||
| Weight |
about 15kg (excluding antennas) |
||
|
Working Temperature |
-40 to +55℃ |
||
|
Relative Humility |
≤90%(RH) |
||
|
Air Pressure |
86~106kPa |
||
|
Safety Regulation |
AC Adapter UL (E190582) / CSA (LR112971 Level 3) |
||
|
Waterproof level |
IP65 | ||
|
Installation Method |
Wall-mounted or pole holding |
||
Applications:
*Airport, prison, power plant, power grid, gas station, oil refinery, mining area, private territory, etc.
*Other sensitive places where flying civilian drones(eg. DJI drones) is prohibited such as critical infrastructure, government, military, finance, security, police and command center.
Packing lists:
Outdoor Fixed Drone Jammer Main Unit x 1pc
FRP Omni-directional Antennas x 3pcs
User Manual x 1EA (optional)

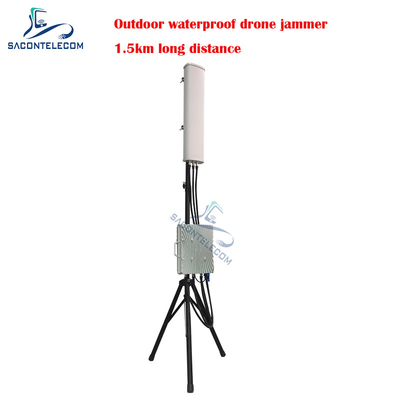

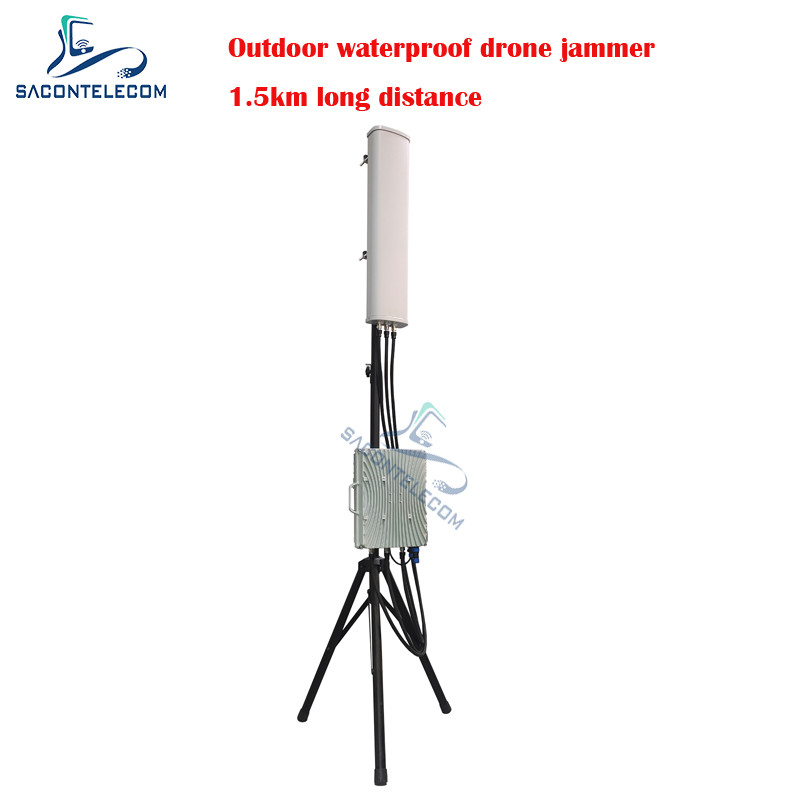

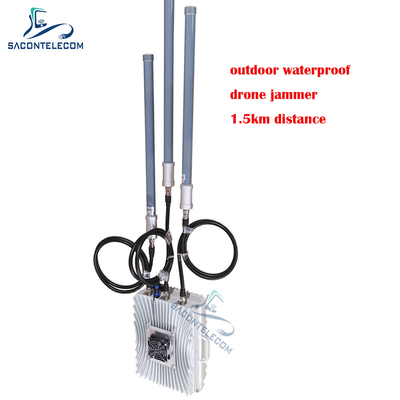

Photos:
