Product Details:
|
| Product Name: | Drone Detector | Frequencies: | 400-6000mhz |
|---|---|---|---|
| Detection Distance: | 1.5-2(km) | Detect Range: | 360° |
| Size: | 220*130*35mm（Exclude Antenna） | Weight: | 950g (Enclude Antenna) |
| Highlight: | Portable Anti Drone Detector,FPV Handheld Signal Detector,UAV Handheld Signal Detector |
||

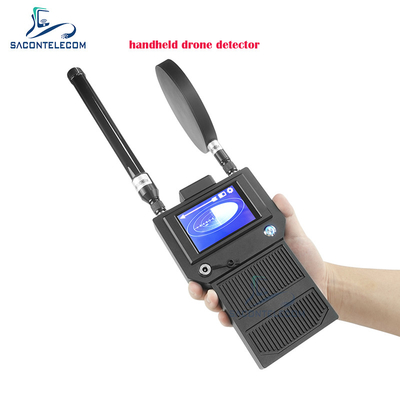

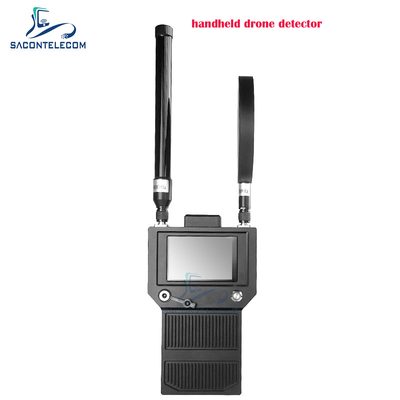

400-6Ghz portable anti drone detector FPV UAV handheld signal detector up to 2km
Production application:Need cooperate with portable Antidrone device,when drone noticed not timely.
Specifications:
| Working bands | 400-1500MHz |
| 2200-2500MHz | |
| 5100-5900MHz | |
| Cell Capacity | 11.1V 4Ah |
| Working distance | 1.5-2km |
| Detect range | 360° |
| Working Angle | 20° |
| Charge | Adapter charger12.6V |
| size |
220*130*35mm(Exclude antenna) |
| Antenna1 |
2.4G 5.8G dual band high gain omni fiberglass antenna |
| Antenna2 | Omni fiberglass antenna 100-6000MHz |
| Antenna3 | Directional Antennna 100-6000MHz |
| Detector weight | 750g(Exclude antenna) |
| weight | 950g(Enclude antenna) |
| Aim drone:DJI,TONG DAO ,and four rotor,fixed wing,FPV | |
Operate introduction
1. Install Antenna(Osignal:directional antenna, signal:omni antenna)
2.Press the switch, the detector working, top right corner control voice and shock, When drone was detected, the device will shock and the drone picand frequencyband showed on screen.
3. Hitdrone picturewalk intoLateral interface, first go around one circle 360°the detector working. when two circle arrows same direction, that is means drone direction.
4. Turn off button the detector closed,and then take off antenna.
product list
| Number | name | quantity |
| 1 | drone detector | 1pcs |
| 2 | Omniglassfiber antenna2.4G /5.8G | 1pcs |
| 3 | Fiberglass Omni Antenna 100-6000MHz | 1pcs |
| 4 | Directional Antennna 100-6000MHz | 1pcs |
| 5 | Charger | 1pcs |
