15 Channels High Power IED Jammer with 1135W Output Power and 20MHz - 6GHz Full Band Frequency

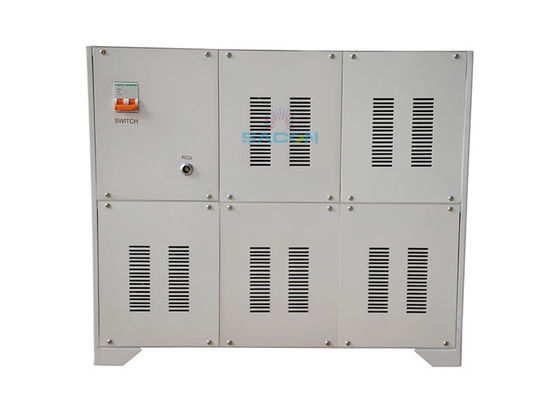

Large Image : 15 Channels High Power IED Jammer with 1135W Output Power and 20MHz - 6GHz Full Band Frequency

Product Details:

Place of Origin:	China
Brand Name:	Sacon
Certification:	ISO9001
Model Number:	SA-VIP1200

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	negotiation
Packaging Details:	Wooden Case with PE Foam
Delivery Time:	15 work days after receive payment
Payment Terms:	L/C,T/T,Western Union,Paypal
Supply Ability:	100pcs/month

Contact Now

15 Channels High Power IED Jammer with 1135W Output Power and 20MHz - 6GHz Full Band Frequency

Description

Product Name:	Anti-terror Bomb Jammer	Signal Source:	DDS Frequency
Output Power:	1135w	Jamming Range:	50-800meters,depend On Mobile Signal Strength
Advantage:	20-6000MHz NO GAP Jamming	Weight:	75kg
Highlight:	ied jammer , rcied jammer

15 Channels High Power IED Jammer 24V DC Full Band Frequency 20MHz - 6G

Product Overview

The SA-VIP1200 15 Channels IED Convoy Bomb Jammer provides comprehensive jamming coverage across the full frequency range of 20MHz to 6GHz simultaneously. With 1,135W output power, the system delivers 150-200m of safe distance protection, extending up to 800m under optimal environmental conditions.

This advanced system features programmable communication windows for authorized personnel and utilizes broadband omni-directional antennas for complete 360º protection. The sophisticated jamming signal modulation method ensures maximum jamming efficiency across all bands for superior security protection.

Key Advantages

Maximum coverage range of 20 to 6,000MHz
Continuous and simultaneous jamming with no gaps
High-gain omni-directional antenna concealed in roof baggage
Integrated high-power generator for independent operation
Internal radiation protection
Wired remote control system
No gap jamming 20-6000MHz with DDS Technology
Modular construction for easy maintenance and upgrades
Jamming capability for up to 15 different modules
Maximum 1135 watt total RF output power

Technical Specifications

RF Characteristic	Specification
Output Power	1135 Watts
Signal Source	DDS Technology
Power Supply	AC110-240V, 24V DC
Modules Per Unit	15
Remote Control	Wired ON/OFF Switch
Remote Monitoring	Adjusted output power by wired control board
Antenna	External Omni-directional for 360º coverage
Power Amplifier Protection	Full VSWR protector
Operating Hours	Unlimited

Detailed Frequency Specifications

Channel	Frequency Range	Target Applications	Output Power
CH1	20~200MHz	Wireless Toys, FM Radio	100W
CH2	200~500MHz	Walkie-talkie, Remote Control, Car alarm, Drone	100W
CH3	500-1000MHz	CDMA, GSM, LTE700, LTE800	100W
CH4	1000~1500MHz	Drone, GPS	100W
CH5	1500~2000MHz	DCS, PCS, GPS, AWS	100W
CH6	2000~2500MHz	3G, WIFI	100W
CH7	851~894 MHz	Cellular CDMA	100W
CH8	902-960MHz	Cellular GSM, E-GSM, Drone	100W
CH9	1805~1990MHz	Cellular DCS, PCS	100W
CH10	2110~2170MHz	Cellular WCDMA	100W
CH11	2400-2500MHz	WIFI, Drone	50W
CH12	2500-3000MHz	MMDS, LTE2500, LTE2600	50W
CH13	3000-4000MHz	Future Band (Reserve)	10W
CH14	4000-5000MHz	Future Band (Reserve)	10W
CH15	5000-6000MHz	WiFi, WLAN, Drone	15W

Additional Specifications

Power Supply	AC110-240V, DC 28V
Output Power	1135W
Jamming Radius	50-800M (depending on environment signal strength)
Power Consumption	3400W
Weight	75Kg
External Antenna Size (L×H×W)	640×540×550mm
Humidity	5%-95%
Operating Temperature	-10°C to +55°C
