Product Details:
Place of Origin: China
Brand Name: Sacontelecom
Certification: ISO9001, CE
Model Number: SA-U008
Payment & Shipping Terms:
Minimum Order Quantity: 5PCS
Price: negotiation
Packaging Details: Wooden Packing
Delivery Time: About 3 working week
Payment Terms: L/C,T/T,Western Union,Paypal
Supply Ability: 5000pcs/month

800m Range 300-6000MHz High Integration Drone Signal Jammer UAV Jamming System

Description
Product Name: UAV / Drone Signal Jamming System Output Power: 168 W
Jamming Range: 0 ~ 800 Meters Bands: 8
Dimentions: 1010mm×320mm×50 Mm Weight: 7.2 Kg
Highlight:

drone signal scrambler

,

drone jamming device

300-6000MHz Drone Signal Jammer Anti Tracking UAV Jamming System
800m Range 300-6000MHz Portable UAV/Drone Signal Jamming System

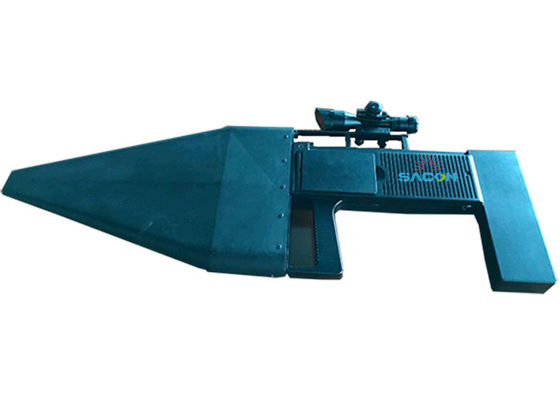

The portable UAV/drone signal jammer SA-U006 is our latest product designed to counter the widespread use of UAVs. It disables targeted UAVs by jamming the 300MHz~6GHz signal, forcing them to fall or return. The jamming distance reaches over 800 meters.

Key Features
  • UHF wideband interference technology
  • High effective power (channel power) and long interference distance
  • Effective segmentation to jam each signal segment of UAV
  • Imported chips, high integration and stability with slow start circuit design to prevent mechanical switch fire
  • Complete self-protection function: automatic shutdown when overheating, output power, standing wave, or other fault alarms occur
Technical Parameters
Channel Frequency Channel Power (±3dBm)
CH1300-400MHz40dBm
CH2400-500MHz40dBm
CH3840-850MHz40dBm
CH4900-930MHz40dBm
CH51080-1300MHz40dBm
CH61550-1620MHz40dBm
CH72400-2500MHz40dBm
CH85725-5850MHz40dBm
Shielding distance: 0 ~ 800m
Battery: DC48V/7A
Power consumption: 168W
Weight: 7.2Kg
Size (L×W×H): 1010mm×320mm×50mm
Humidity: 5%-95%
Operating temperature: -20 to +50℃
Applications
  • Prisons and detention facilities
  • Airports and aviation security
  • Scientific research centers
  • Interrogation rooms and courthouses
  • Labor camps
  • All important locations that forbid aerial photography by UAVs
Equipment Overview

Complete unit display with labeled components:

800m Range 300-6000MHz High Integration Drone Signal Jammer UAV Jamming System 0
① Lead rail: Mounting position of sight
② Power switch: Press for 1 second and hold for 3 seconds to turn on
③,④ Hanging ring of braces: Mounting position of gun braces
⑤ Gun buckling machine: Press to open and close current frequency band
⑥ Liquid crystal display: Parameter setting screen
⑦ Charging socket: For matching charger
Control Interface

Main interface menu layout:

800m Range 300-6000MHz High Integration Drone Signal Jammer UAV Jamming System 1
① Setting key: Enters settings selection interface
② 5.8GHz/1.5GHz band mode indicator
③ 2.4GHz/1.5GHz band mode indicator
④ User-defined band mode indicator
⑤ 5.8GHz/1.5GHz band mode setting key
⑥ 2.4GHz/1.5GHz band mode setting key
⑦ User-defined band mode setting key (up to 4 bands simultaneously)
⑧ Power display icon
⑨ Detection alarm indicator
⑩ Standing wave alarm indicator
⑪ Temperature alarm indicator
⑫ Normal operation indicator
⑬ Graphical temperature display
⑭ Numerical temperature display
Settings Interface
800m Range 300-6000MHz High Integration Drone Signal Jammer UAV Jamming System 2
⑮ User-defined band mode settings
⑯ Sound and vibration settings
⑰ Return to main interface

Frequency band settings interface:

800m Range 300-6000MHz High Integration Drone Signal Jammer UAV Jamming System 3
⑱ Frequency band on/off settings
⑲ Return to main interface
⑳ Save band settings

Vibration and sound settings:

800m Range 300-6000MHz High Integration Drone Signal Jammer UAV Jamming System 4
㉑ Sound setting button
㉒ Vibration setting button
㉓ Return to main interface
㉔ Save current settings
Accessories

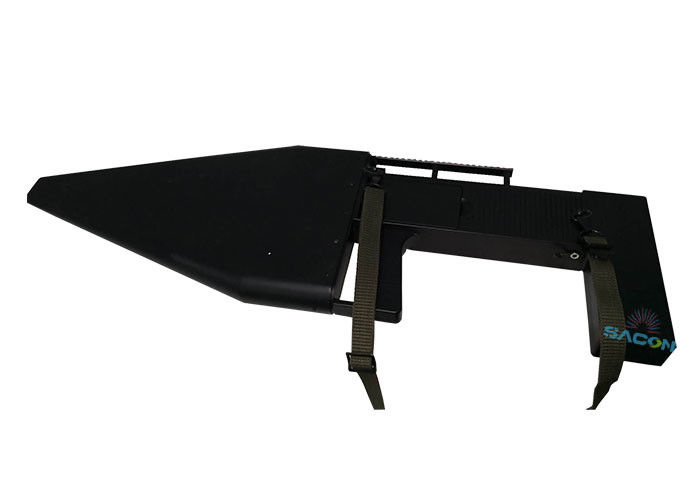

Package includes main unit, AC 220V to DC-48V charger, sight, gun straps, and instruction manual.
