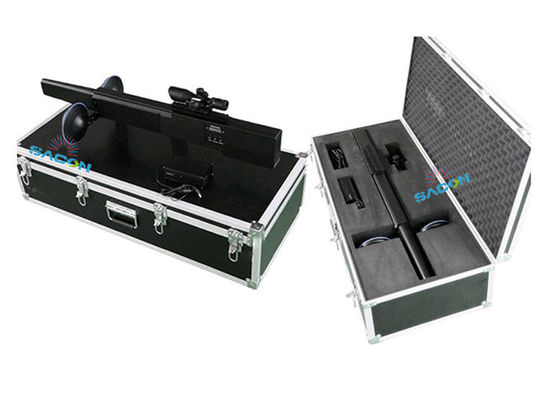

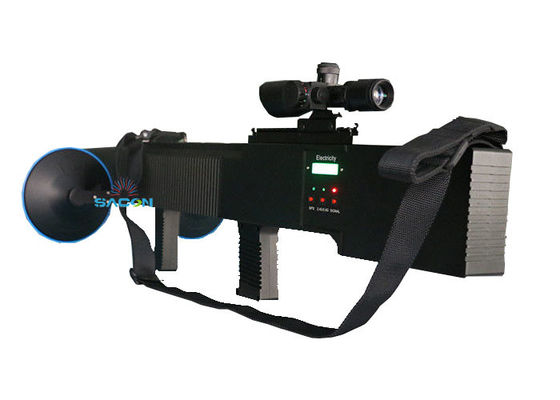

Portable UAV Drone Signal Jammer 160W High Power with 1500m Long Distance Jamming Range

160W High Power Portable UAV Drone Signal Jammer Up To 1500m Long Distance

The portable UAV/drone signal jammer SA-U004 is our company's latest product designed by R&D department, against the widespread use of UAVs nowadays. It disables the targeted UAV by jamming the UAV's remote-control signal and GPS signal, so as to force the UAV to fall or return. The jamming distance reaches more than 1500 meters.

Effective interference with:

• UAV's Remote-Control Signal 2400MHz
• GPS signal 1500MHz
• Remote-Control Signal and Image Transmission Signal 5800MHz

• Outdoor waterproof case with protection level of IP55
• UHF broadband jamming technology: highly effective power & long jamming distance
• Separate control of each module, convenient operation
• High quality tubular radiator, effective in radiating heat
• Import components; the moderating circuit-starting design avoids a spark when the device turns on/off
• High integration & Stable operation
• Batteries are separate from the main device, easy to be replaced and maintained

Additional Specifications:

• Build-in battery: 24V15A (continue working 4 hour)
• Jamming radius: 1000 ~ 1500 meters
• Power consumption: 480W
• Main engine weight: 12Kg
• Main engine size (long×wide×high): 320×200×460mm
• Humidity: 30%-95%
• Running temperature: -10 to +50 degree centigrade

Our company develops a centralized monitoring system, which can monitor all the devices together by connection to the Internet.

Internet Monitoring: When connecting the monitor server with public network, you can monitor all the online devices. You can login the monitoring system anywhere in the world, and have a real-time monitoring on the online devices of any area in the world.

Real-time Monitoring: All the online devices' parameters and operating state will display on the interfaces of the system in real time, such as output power, working temperature, operation normal/abnormal, devices online/offline and so on.

Setup Interface: On the system interfaces, you are allowed to modify devices' working parameters as you need. For example, to increase or decrease the output power; to turn on/off signal output of all/some of the frequency bands-the setup will get a real-time response on the devices.

Real-Time Alarms: When any device has failure alarms (such as standing wave alert, less power alarm, over-temperature alarm, etc.), the monitoring system will mark it with an eye-catching red, and gives detailed alarm information, convenient for system administrator and engineering personnel to arrange maintenance work.

Mainly applied to prisons, airports, scientific research centers, detention houses, interrogation rooms, courthouses, labor camp, all kinds of important places, etc. that forbid aerial photography by use of UAVs.
