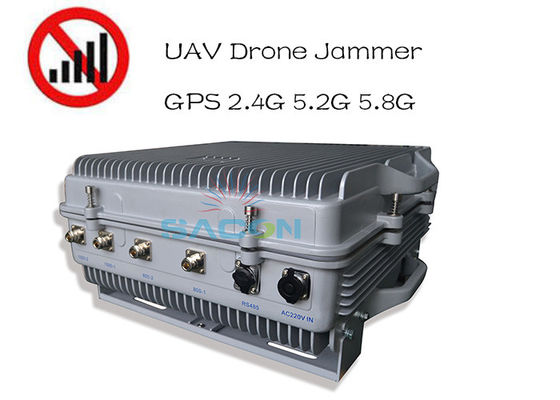

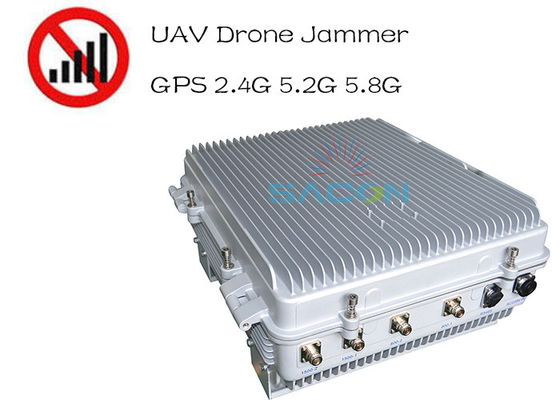

385W High Power Drone Signal Jammer with 1.5KM Long Distance and IP64 Waterproof for Outdoor Projects

IP64 High Power 385w Drone Signal Jammer Waterproof For Outdoor Project Up To 1.5km

The SA-WDJ01 UAV drone signal jammer is a professional high-power drone defense system that can effectively counter 100% of drones and UAVs, including Phantom 4, Phantom 3 Professional, Advanced, Standard series, and Inspire series. Features RJ45/RS485 wireless control system customization and supports omni or directional antennas for 360° jamming coverage or extended distance operations. Designed for outdoor projects with IP64 waterproof rating, this drone jammer delivers up to 100W per frequency band with a maximum range of 1.5km. Capable of continuous 24/7 operation, it is ideal for prisons, management areas, national strategic resources projects, nuclear industry facilities, airports, political regions, and other sensitive locations.

• Total output power of 385W with high gain 5-10dbi omni antennas, providing 800-1500m shielding range (dependent on local signal strength)
• Each unit can jam up to 8 frequency bands simultaneously with individually adjustable power settings from maximum to off
• 100% safe VSWR over protection (isolator) for each modular component
• Robust aluminum alloy casing with integrated cooling fans for non-stop continuous operation
• IP64 rated for outdoor installation with secure design to prevent sabotage
• Optional RJ45/RS485 wireless control system integration

Custom frequency ranges available including Mobile phone GSM 2G, 3G, 4G LTE and more. Silkscreen OEM services also offered.

• Jam Signal Type: Drones UAVs RC 2.4G/5.8GHz + GPS L1 Signals
• Output Power: Total 385W, 35-100W per band
• Jam Radius: Up to 800-1500 meters (GPS signal up to 1500m)
• Power Supply: AC 110 or 220V to DC 27V
• Cooling System: High efficiency aluminum alloy radiator + 4x cooling fans
• Working Time: Continuous non-stop operation
• Product Size: 490 x 400 x 185mm (excluding antennas)
• Product Weight: Approximately 45kg (with omni antennas)
• Package Contents: Jammer Host x 1, Adapter x 1, antenna x 6, 2 meter cable x 6

Additional Specifications:

• Power Supply: AC adapter 50 to 60Hz (AC110 or 240V to DC27V)
• Dimension: 490 x 400 x 185mm
• Package Size: 65*55*35cm
• Net Weight: 29kg, Gross Weight: 32kg (excluding antennas)
• Total Power: 385W
• Shielding Radius: 800-1500 meters (dependent on drone and remote control distance)
• Warranty: One year from delivery date
• Omni Directional Antenna: Dimension: 120 x 3.8 cm, Net Weight: 1kg, Gains: 5-10dbi, VSWR > 1.5, Coverage: 360°

• Protection of prohibited areas including prisons, management areas, national strategic resources projects, nuclear industry facilities, airports, and political regions
• Prevention of information leakage at sensitive sites such as major criminal case scenes, urban management law enforcement operations, important security venues, political protection details, large-scale performance rehearsals, archaeological excavation sites, and major group events
• Combating illegal activities using unmanned aerial vehicles as carriers, including trafficking, smuggling, and illegal goods or information transmission
