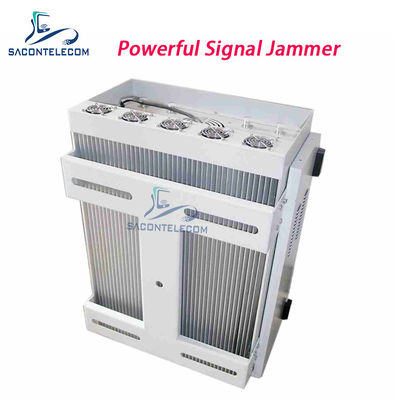

190W Output Power 2km Jamming Range IP64 Waterproof UAV Drone Jammer

This outdoor anti-UAV drone signal jammer SA-WDJ05 features a waterproof system with IP64 rating and IP network monitoring capability. It effectively blocks 2.4G, 5.8G, and GPS signals. With a powerful 190w output combined with high-gain directional antennas for each band, this drone jammer can shield an area with a radius of 1000 to 3000 meters, depending on environmental conditions and signal strength. The system can also block mobile phone signals, with optional frequency configurations available.

This cell phone signal jammer features separate frequency RF modules and single switch control for precise signal targeting, customized frequency options, and easy maintenance. It supports PC operation, phone APP control, and integrated drone detection systems. The outdoor waterproof signal jammer includes a power supply protection box to ensure stable and safe operation.

• Ultra high power 190W with high gain directional antennas for each band
• 3 channel or more channel signal shielding with IP64 level main control engine
• Customizable frequencies including 433MHz, 868MHz, 912MHz, 916MHz, and GPS/Glonass navigation signals
• Separate frequency RF modules with single switch control for precise signal targeting
• Efficient heat dissipation system for continuous long-term operation
• Optional monitoring software supporting PC operation, phone APP control, and drone detection integration
• VSWR protection with power supply protection box for stable and safe operation
• Huawei latest high-tech thunder protection box
• Only influences downlink without affecting base station operations

• IP64 level reoxidation aluminum alloy design with hinge lock protection for easy management and anti-damage
• N type connector (customized) to link with antenna
• Efficient heat dissipation system with built-in fan and fin
• Main switch to control the complete device operation
• Optional choice for directional or omni fiberglass antenna
• Separate module design for single frequency control
• LED indicates the working status
• Over temperature and VSWR protection with power supply protection box
• Ensure antenna is connected before turning power on
• Slow set up circuitry for long-term reliability

Available in various power outputs (10W, 20W, 30W, 40W, 50W, 100W):

• CDMA/GSM850MHz: 850-894MHz; 100W
• GSM900MHz: 925-960MHz; 100W
• GSM/DCS1800MHz: 1805-1880MHz; 100W
• 3G/UMTS2100MHz: 2110-2170MHz; 100W
• 4GLte700MHz: 790-826MHz; 100W
• 4G/WiMAX2600MHz: 2620-2690MHz; 100W
• WIFI2.4G: 2400-2485MHz; 100W
• 4G2500MHz: 2500-2570MHz; 100W
• GPSL1: 1570-1610MHz; 100W
• GPSL2: 1200-1300MHz; 100W
• GPSL3: 1380-1400MHz; 100W
• Wi-Fi5.8GHz: 5725-5850MHz; 10W
• VHF: 135-174MHz; 100W
• UHF: 400-470MHz; 100W
• RC433MHz: 433MHz; 100W
• RC315MHz: 315MHz; 100W
• CDMA450MHz: 450-470MHz; 100W
