Product Details:
|
Product Name: | Wireless Signal Jammer | Output Power: | 5-10W Each Band |
---|---|---|---|
Working Time: | Not-stop Working | Package Contents: | Jammer Host X 1, AC Plug X 1, Screws Installed On Wall X 2 |
Size: | 380x280x 130mm(not Include Antenna) | Weight: | Appr.5.0kg |

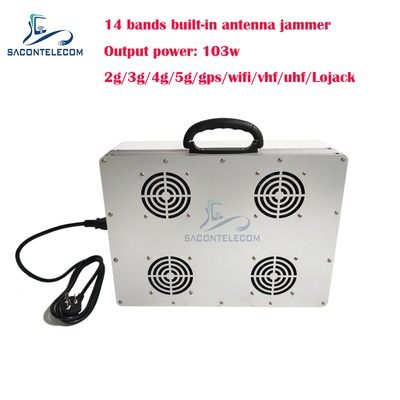

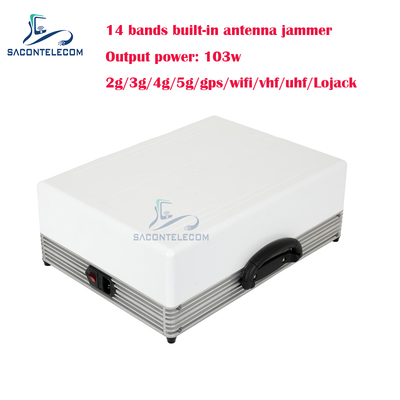

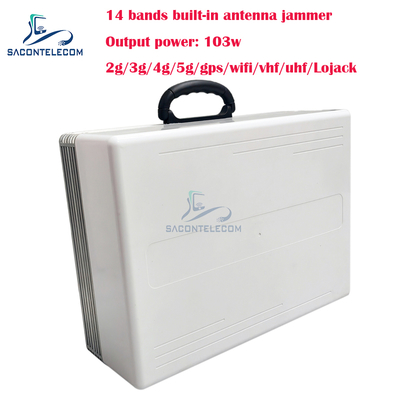

All Frequencies 14 channels Indoor Mobile Phone Signal Jammer Blocker Up To 80m
Descriptions:
Name: New indoor using hidden directional antennas mobile phone 2G 3G 4G 5G WIFI GPS LOJACK LORA signal jammer 103W output power jamming up to 80m
Model: SA-D14
Color: White / Silver
Basic Specifications
Jam Signal Type: 1: SA-D14: Full Bands Mobile Phone 5G/4G/3G/2G+WiFi2.4G+WIFI5G+GPSL1/L2L3L4L5+LORA+LOJACK/UHF/VHF
Output Power:Total 103W,5-10W each band
Jam Radius:10-100meters
Power Supply:AC110-240V to DC24V
Cooling System:High efficiency aluminum alloy radiator, Build-in 4 cooling fan
Working Time:Not-stop Working
Product Size:380x280x 130mm(not Include Antenna)
Product Weight: appr.5.0kg
Package Contents:Jammer Host x 1, AC Plug x 1, Screws installed on wall x 2
Application:
It can be applied at meeting rooms, conference rooms, museums, galleries, theatres, concert halls, churches, temples, restaurants, classrooms, training centers, factories, banks, trains, bus and more Places that require silence, confidentiality and information security.
For some locations of special purpose such as hospitals, gas stations and more, please do field test first to make sure no interference happened to the normal operation of their equipment and instrument
Specifications:
Key technical specifications: SA-D14 for worldwide | |||
Channel | Output port | Frequency range | Average out-putting power |
1 | 4G700/800 | 700-821 MHz | 10W |
2 | CDMA/868/GSM/915/LORA | 850-960 MHz | 10W |
3 | DCS/PCS | 1805-2000 MHz | 8W |
4 | 3G2100 | 2110-2180 MHz | 8W |
5 | 4G2300/WIFI2.4G | 2300-2485 MHz | 8W |
6 | 4G2600 | 2500-2690 MHz | 8W |
7 | 5G600 | 617-698 MHz | 10W |
8 | 5G1500/GPSL1 | 1427-1610 MHz | 5W |
9 | 5G3300/3500 | 3300-3600 MHz | 8W |
10 | 5G3700 | 3600-3900 MHz | 8W |
11 | WIFI5G | 5125-5850 MHz | 5W |
12 | VHF/LOJACK | 135-175 MHz | 5W |
13 | UHF/433 | 400-480 MHz | 5W |
14 | GPSL2L3L4L5 | 1170-1390 MHz | 5W |
Power supply: AC adapter 50 to 60Hz, (110-240V AC-24V DC) | |||
Dimensions: (length ,width, height) 380x 280x 130mm Build-in 2-10dbi high gains directional antennas |
|||
Packing size: 485x350x185mm N.W: 4.8kg Gross weight: 6.0kg | |||
Total power:103W Shielding distance: (10-100) meters At -75dBm Still depends on the strength signal in given area, Shielding radius of VHF/UHF signal about 20meters |
|||
Warranty: one year from delivery date |
Notice: If you want to use this device in car, pls buy an inverter of DC12V/24V to AC110-240V, Power≥500Watts
OEM Customized Service:
Silkscreen OEM service can be offered
Packing Lists:
1pcs fixed mobile signal jammer
1pcs AC Plug
2pcs Screws installed on wall
